| User
Authentication and Tracking
How
Web Crossing Recognizes Users at Login
Using External Authorization
How Web Crossing Tracks Users Through the Site
Troubleshooting
Resources
How
Web Crossing Recognizes Users at Login
Default
Authorization
Normally, when a user sends a login request, Web Crossing
checks its internal database of userIDs and user passwords, and
decides if the combination is correct. If it is, a user
certificate is created and the user is given access to the
site.
HTTP
Basic Authorization
Web servers can restrict access to certain pages and require
users to enter a login name and password. This is referred to
as "HTTP Basic Authentication." Web Crossing can use a web
server's HTTP authentication system instead of its default authentication
system. If you password-protect the directory where the Web Crossing script
is, the server will ask the browser for the user's identity when
the request is made for a page in that directory.
This approach is useful only in an environment when Web Crossing
runs as a CGI, and you don't plan to allow guest access.
The
browser gives the user a userID and password window, the user
provides the information, and then if the information is correct,
the server sends Web Crossing the message that the user is OK
to let into the site, and Web Crossing serves up the page.
If the
user is not already in Web Crossing's database, a record is added
for that user name and password combination. However, the user's
email address is not added, because that property is not supported
by HTTP basic authorization. You, or they, will have to add it
in Preferences.
You
can go in as Sysop and pre-register one user or multiple users
with names and email addresses (Control
Panel > User Management > Add user), or add an email
address to a preexisting user, by using Control
Panel > User Management > Set a user's preferences. If
you don't do this, the users' email address will not be available
on the conference pages.
To turn
on browser authentication, go to the Control
Panel > User Management > Registered Users and find
the section on HTTP Basic Authorization.

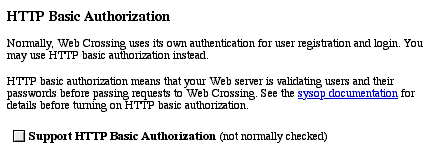

Figure
1 - HTTP Basic Authentication Pane
| Note:
Guest access is not possible under HTTP Basic Authorization,
and users will not be able to register themselves for Web
Crossing without any action on your part: you will have to
set up and maintain the server-based authorization system. |
Using
External Authorization
External
authorization refers to a procedure whereby some external source
validates a user and tells Web Crossing that it's OK to admit
them. If the user doesn't exist in the Web Crossing database,
you can instruct Web Crossing to automatically register them.
If you're using a Radius server for authentication, you can set
Web Crossing to interface with the Radius server in Control
Panel > Registered Users.
If you
want to use another form of external authorization, you'll need
to set up an authenticate filter macro. This permits you
to intercept an unauthenticated user's first access to Web Crossing
and query an external database via a script you call with the
WCTL %% exec %% directive, to get the information from your
external database and determine whether the user should be logged
in. The script will have to be written in some programming language
that your web server understands. For more information on this,
see the Web
Crossing FAQ.
One
strategy is to have your external authorization system set
a cookie after it authorizes the users. Web Crossing then reads
the cookie and allows entry. An example of how to do this is in
the authfiltex.tpl, which you can find on the Lundeen FTP
server. (ftp://ftp.webcrossing.com).
Another
strategy is to have your external authorization system send
Web Crossing the userID information in an URL. An example of this
is in the authenticateFilterSample macro in the useful.tpl
file, which you can find in your Web Crossing server directory.
See the sysop
docs for more information on how to pass variables in an URL.
A third way to go about it is to set up external authorization
via LDAP or XML-RPC.
The basic strategy would be to have Web Crossing check for authorization,
and if the user is listed, admit them. Then you can have Web Crossing
add the user if they aren't already in the Web Crossing database.
How
Web Crossing Tracks Users Through the Site
Certificate-based
authorization is the default method used by Web Crossing.
The unique user certificate, created each time upon login, follows
the user throughout the site as he or she clicks on Web Crossing-generated
links, and identifies him or her to Web Crossing.
  Login
certificates expire when the user hasn't requested any pages for
a chosen length of time. This time is configurable on a site-wide
default basis by the sysop in the Control
Panel > General Settings > Automated Logout, or for
any individual user on his or her preferences page.
| Note:
If you are using certificate-based authorization and have
content on your site which requires the user to step out of
the Web Crossing-served content area and then back in, you'll
be better off using cookies (described just below) for authentication.
In this situation the user certificate will be lost as the
user leaves the Web Crossing-served pages and he or she will be asked
to log in again upon return. Using cookies prevents this. |
Cookie-based
authorization can also be used to keep track of logged-in
users. Cookies are tiny text files which Web Crossing places on
the user's computer and which are sent back to the server to identify
the user when a page is requested.
Web
Crossing sets the cookie initially at login, and on subsequent
requests for pages the user is identified without having to log
in again. The cookie expires when the user quits their browser.
|
Note:
If you're using Web Crossing in an environment with shared
computers, users will need to be careful to quit their browsers
when they are done at your site in order to expire the cookie,
so Web Crossing doesn't identify them as someone else mistakenly.
You
may want to develop a Logout link or button, using the logout
macro in the useful.tpl file in your webx directory on the
server, or use the logout cookie macro there, which automatically
purges the cookie after a user-definable time.
Another
strategy is to turn on cookies, but set the defaults for
all current and future users to "do not use cookies."
That way individual users can turn on cookie use for themselves
in Preferences if they wish, but those in shared environments
don't have to worry about logging out or quitting their
browser.
|
When
you enable cookies for the site, users will have a choice to enable
or disable cookies for themselves individually on their preferences
pages. You can choose to enable cookies by default for existing
users, and/or enable cookies by default for new users. You can
also choose the domain you want the cookie to be served by.
This
is useful if you have a site with several sub-domains. For example,
if your Web Crossing is hosted on forums.webxharbor.com and your
static pages are on pages.webxharbor.com, a cookie set
by forums.webxharbor.com wouldn't be readable by pages.webxharbor.com.
But
putting in webxharbor.com into the Domain for cookies
blank will allow your Web Crossing-set cookie to be read anywhere on the
webxharbor.com site.

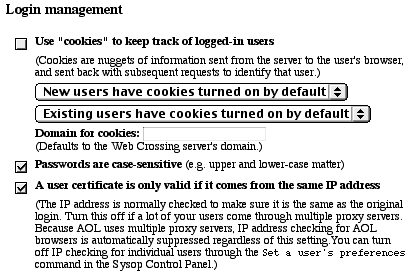

Figure
3 - Turning on cookies
Passwords
In this pane you can also specify whether you want passwords to
be case-sensitive or not. It's checked by default, but you'll
probably get fewer lost password requests if you disable this
option!
Rotating
Proxy Servers When a request for a page is made, Web Crossing
automatically checks to see whether the user's certificate comes
from the same IP address as it did at login. If it's not the same,
Web Crossing asks the user to log in again as a security measure.
Most
users who are using modems for internet connections will be assigned
an IP address when they first dial online, and they will keep
this number until they hang up and sign off that particular session.
Users who have cable modems or other always-on internet connections
will usually have a constant IP address, or one which changes
only every several hours.
However,
AOL, WebTV, and some other ISPs use rotating proxy servers, meaning
that a user may have a different IP address each time they request
a page. This may cause these users to have to log in every time
they want to go from page to page.
Web
Crossing automatically suppresses IP address checking for AOL
users, no matter what your settings are for the site. (But it
doesn't automatically do this for WebTV users or other ISPs who
do this.)
You
can turn off IP address checking for individual users through
the Control Panel > User management >
Set a user's preferences panel.
If you
have a lot of users coming from rotating proxy servers, you may
want to disable this altogether. However, if you disable it, users
do not have the option to enable it individually in preferences.
Issues
with certificates and links It's possible for Web Crossing
to misidentify a user under certain conditions. The following
conditions make it more likely that this will happen:
- creating
a link within Web Crossing by cutting and pasting the URL from
the browser location area without removing the user
certificate from between the @ signs
- turning
off IP address checking
- not
using cookies
If the
cookie doesn't identify you properly, and you have IP address
checking turned off, it's possible for Web Crossing to identify the user
as you, via the certificate in the pasted URL! Login certificates
expire after 60 minutes (unless you've changed the default in
Control Panel > General > Site Information),
so there's a limited time window in which this can happen, but
the best fix is to always remove the user certificates from
links you create manually.
Troubleshooting
Some
of my users are being asked to log in again and again.
- Try
disabling IP address checking for that user
- Try
turning cookies on
- Check
to see if the links preceding the login request contain
the %% certificate %% tag if appropriate
Resources
Sysop
Documentation
Sysop Control Panel
- General
Settings
- Site
information > automatic logout
- User
Management
- Registered
users
- Set
a user's preferences
- Add
user
Web Crossing FAQ:
|
