| Web
Service as a CGI
Defining
CGI Service
Why Use CGI Mode?
Switching from Direct Web Service to
CGI Mode and vice versa
Troubleshooting
Resources
The Web
Crossing server can be run in conjunction with
another web server,
such as Apache, WebSTAR or IIS. Web Crossing can also
run by itself,
without the need for an external web server.
Defining
CGI Service
When
Web Crossing runs by itself, without using an
external web server,
it is referred to as Direct Web Service Mode, or
Direct HTTP Mode.
This mode of operation is described in detail in the
section on
Direct Web Service. When Web Crossing runs under
another web
server it is referred to as CGI Mode. The operation of the Web
Crossing Server under CGI Mode is shown conceptually
in figure
1.

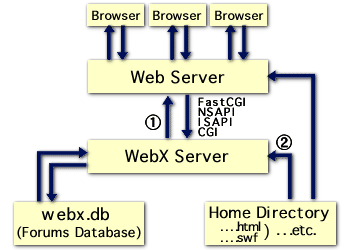

Figure
1 - CGI Mode
When
running in CGI Mode, Web Crossing communicates with the users'
browsers via an external web server, such as Apache, WebSTAR or
Microsoft IIS (Figure 1-1). Web Crossing serves from its
own webx.db database, which contains all the forums and
user information, and also can serve ordinary home
pages directly
from the html directory, located in the Web
Crossing server's
webx directory (Figure 1-2). Ordinary web pages
served through Web Crossing, via the external web server, can
also contain WCTL, providing
dynamic content and access to the Web Crossing
database for ordinary
web pages, just like it can in direct web service
mode.
Although
we commonly refer to this mode of serving just as
CGI Mode,
there are actually various forms of CGI protocol, depending on
how your external web server is configured:
- Standard
CGI Mode is usually possible with all kinds of external web
servers using all platforms (Unix, Mac OS and Windows). The
main advantage of ordinary CGI Mode is just this
compatibility
point. It is also easy to setup because no CGI port numbers
or extra settings are required. The drawback to
this mode, however,
is that this is absolutely the slowest way to run
your Web Crossing
server. While you may not notice any performance
problems with
a small number of simultaneous accesses, the
standard CGI protocol
is not really suitable for large numbers of hits and you may
notice slowdowns as requests try to get processed
via the "CGI
bottleneck."
|
Note:
For many situations the CGI bottleneck is not really as
dire as all that. We're not afraid to throw out
some sample
numbers. Doug ran a site with about 12,000 hits/day under
CGI Mode for a long time and really did not
have any performance
problems at all. He eventually switched to
Direct Web Service
mode because of the other advantages in that mode, such
as being able to provide Chats via Port 80, etc. However,
if you are talking about a really big site,
then you definitely
want to run in Direct Web Service mode because CGI Mode
will not be able to handle it.
|
- FastCGI
is a special CGI protocol that essentially eliminates the CGI
bottleneck found in the standard CGI protocol.
However, FastCGI
is not always available. For example, the current
standard downloadable
versions of the Apache server do not come with the
FastCGI module
built-in. You must locate and download the current
FastCGI source
and rebuild your Apache server (recompile it)
yourself to take
advantage of FastCGI. Beginners who are not experienced with
this process may find it daunting. However, once
your external
web server is configured to support FastCGI, it is quite easy
to set up. All that is required is setting the
FastCGI service
port number on both the Web Crossing side and web
server side.
When FastCGI is being used, performance is
essentially as fast
as direct service mode.
When your Web Crossing server and external web
server are being
run on different servers and you wish to run your
Web Crossing
server in CGI Mode, you must use FastCGI.
- NSAPI
and ISAPI are special FastCGI protocols that are made to run
specifically with the Netscape and Microsoft IIS web servers,
respectively.
- There
is also a new CGI protocol just released for Web
Crossing that
allows faster communication with FastCGI-enabled
web servers.
Why
Use CGI Mode?
As described
in the section on Direct
Web Service,
the advantages of direct web service are so great,
why would you
want to bother running Web Crossing in CGI Mode under
an external
web server? After all, Web Crossing does not require a separate
server, and runs faster without it.
In almost
all cases, the answer to this question is, "If you can run
your server in direct web service mode, by all means
do so."
However,
in real-life use, there are simply some cases where running as
a CGI is more practical:
- If
you are running Web Crossing on a shared rental
server somewhere,
rather than on its own dedicated server machine,
then you probably
don't have a choice. Unless you want to run Web Crossing on
a non-standard port number (a
port other than 80) and risk isolating visitors who
access from
behind firewalls, you may not be able to run Web Crossing in
direct web service mode without conflicting with an
already-existing
web server. In other words, while some Internet
Service Providers
allow you to run CGI, they probably won't allow you to take
over port 80 and run your own web server on a shared machine.
In this case, running Web Crossing as a CGI eliminates this
difficulty.
- Even
on your own dedicated machine, you may simply find
it more convenient
to run Web Crossing as a CGI under an
already-running web server
that is already serving your current site's web
pages. Installing
Web Crossing as a CGI is simple, so you may decide
that unless
a large amount of traffic is causing a performance
problem that
it is just easier to "leave things as they are" and
just add Web Crossing as a CGI to add extra features to your
existing web server.
|
Note:
Under Unix (for example, Linux) both Web
Crossing and your
external Apache server can run in direct
service mode, both
on port 80. How, you ask, can you accomplish this without
creating a separate server machine? The answer is IP
Aliasing. (Under Linux it is particularly
easy to create
an IP Alias using the linuxconf
command.)
If
you run Web Crossing under one IP address and
Apache under
a second IP address, neither server will
conflict with each
other even when Web Crossing is in direct web
service mode.
If
you do this, you can create a "www" domain for
your Apache server and a separate "Web
Crossing"
domain for your Web Crossing server, take
advantage of some
useful Apache directives, such as
"redirect" and
maintain all the conveniences of running in
direct web service
mode.
You
might want to just think about this alternative
before using
CGI Mode.
|
Switching
from Direct Web Service to CGI Mode
When
you install Web Crossing using the installer program, you can
select between running in direct web service or in
CGI Mode.
If you
decide after installing to switch a direct web
service Web Crossing
server to run in CGI Mode, go to Control
Panel > Direct Web service and uncheck the
box labeled
Enable direct Web (HTTP) service from Web
Crossing.
Then
just:
- Stop
Web Crossing in the usual way (Unix: by entering
the "make
quit" command; Windows NT: by stopping the server in
the configuration program, or by uninstalling the
service; Mac:
by just quitting the application)
- Move
the WebX file to the cgi-bin or scripts
file of your external web server and the Images folder
to the root of your external web server.
- Restart
Web Crossing server in the usual way (Unix: by entering the
"make run" command; Windows NT: by
installing
as a service in the configuration program; Mac: by
double-clicking
on the application)
If you're
running NT and you have trouble with this method, you might want
to just rerun the installer to ensure that all the
proper settings
are changed.
To
reverse the process - switch from CGI Mode to
Direct Web Service,
just check the Enable direct Web service box, stop
Web Crossing,
then reverse the steps listed in #2, and restart the server as
described above.
Troubleshooting
Web Crossing
is conflicting with an another web server and won't start up.
I keep on getting "port already in use"
errors.
- Web
Crossing is attempting to start up in Direct
Service Mode. You
need to force it into CGI Mode as follows:
- Make
sure that you have stopped the Web Crossing
server by entering
the "make quit" command.
- Edit
the webx.set file in the webx directory and
change the entry for webPort from
80 to 0
(zero).
- Restart
the Web Crossing server with the "make
run"
command.
When
I start Web Crossing in CGI Mode, none of my buttons
seem visible.
I am just getting broken images.
- Your
Images folder must be in the root directory of your external
web server. For example, if you are using Apache in Unix and
the Apache root directory is /home/httpd/www/html then
you can move your Images folder to the correct location with
the command mv Images /home/httpd/www/html.
After moving
the Images folder you should be able to see your
buttons.
I followed
all the instructions to set up Web Crossing as a CGI
under Microsoft
IIS, but I still can't see the server when I try to access with
the URL http://mydomain.com/scripts/webx.dll? - what am
I doing wrong?
- 99.9%
of the time when this happens the cause is that you have not
turned on "execute" permission for your IIS
scripts folder. Refer to your IIS manual for
how to make
this setting change. After you do so you should be
able to access
your server just fine.
