Nested
Templates - Introduction
In the
previous section,
you learned how to use a process filter to intercept vulgar words
on their way to the Web Crossing database, and how process filters
can allow you to even customize how Web Crossing functions.
To close
out this introduction to the Web Crossing Template Language, we
will show you one more powerful technique - using nested templates
to customize the look and feel of a single folder hierarchy while
leaving your other folders unchanged. This uses a feature of WCTL
called nested templates - including one template inside another.
Using
nested templates you can override the default behavior of specific
templates, and limit the effect of your changes to specific folder
hierarchies.
Customizing
a Folder Template
Consider
the template that displays the list of items in a folder: %%
macro folder %%:
%% macro folder %%<HTML><HEAD><!-- Page produced by %% programName %%(r)/%% platform
%%-%% version %% (%% programPromo %%) for %% siteLicensee
%%--><!-- User interface (c)Copyright 1995-1999 by Lundeen
& Associates. All rights reserved.--><title>%% siteTitle %% - %% pathTitle %%</title></HEAD><body %% background %%>%% preparedFor %%%% banner
%%<b>%% backPath %%</b><ul><h1>%% pathTitle %%</h1></UL>%% pathStandardHeading %%%% pathItems %%%% use toolbar %%%% footer %%</BODY></HTML>%% endmacro %%
This
template uses various built-in WCTL variables and calls other
macros to display the current list of items in the folder. You
can refer to the list of standard
templates in the sysop online reference manual for more details
on the which templates are available.
|
Note:
Unfortunately (and this is always confusing to people when
they first start customizing templates) it isn't exactly
clear what pathStandardHeading and pathItems
actually do. If you look in the templates
list you will find %% macro toolbar %%, but you
will not find either %% macro pathStandardHeading %%
or %% macro pathItems %%.
This
is because those two commands are not actually templates.
They are built-in WCTL
variables which call other templates.
You
can certainly create your own pathStandardHead and
pathItems macros which mirror the action of these
built-in variables, and then customize them as you wish.
But you need to build them from parts found in standard.tpl.
One
development goal of Web Crossing is to turn everything into
user-accessible templates to help developers in modular
customizing. Each new version of Web Crossing provides more
and more of this flexibility.
|
The
pathItems command creates a list of all the unique path
numbers in a folder and then calls a standard template named folderListItem
in a loop to actually display the items, one at a time.
Normally,
when you enter a folder, you will see a list of sub-folders (and
other items such as discussions, chats and links) as in figure
1.
Figure
1 - a list of sub-folders using the standard folderListItem layout
Suppose
we want to modify the behavior of folderListItem for one
particular folder hierarchy without affecting the standard
way other folders are viewed? You might very well want to do this
if you are using Web Crossing's Virtual Forums feature and would
like different folders for different groups of users to have different
kinds of customization.
Let's
change the behavior of this folder hierarchy to display the contents
as a table, instead of a simple list, as in figure 2.

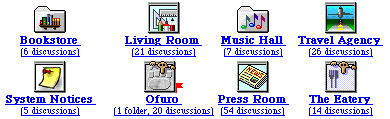

Figure
2 - a modified folder view using a customized folderListItem
The way
we do this is by creating a new template called tableFolder.
By editing the folder appearance (Edit Folder
> Appearance) and setting the template name for the
folder to be tableFolder, as in figure 3, we can
override the functionality of the standard folder macro
and replace it with our customized version - tableFolder.
Figure
3 - setting a custom folder template in Edit Folder
After
making the above setting change, our test folder and all sub-folders
contained in the same hierarchy will use tableFolder instead
of the standard folder template.
Now it
is just a matter of creating the tableFolder template macro.
The structure
of our tableFolder macro looks like:
%% macro tableFolder %%
%% macro folder %%
our modified folder macro
%% endmacro %%
%% macro folderListItem %%
our modified folderListItem macro
%% endmacro %%
%% endmacro %%
The tableFolder
macro contains all the macros whose behavior we wish to modify:
- We
want to make a minor modification to the default folder
macro to close the <TABLE> tag after pathItems
is finished.
- We
want to make a few modifications to the folderListItem
macro to add appropriate <TR> and <TD> tags as needed
so we can display the folder contents in table cells. We also
need to keep track of how many columns have been displayed so
we know when to start a new row.
The key
point here is this - we only want this folder hierarchy to display
modified behavior as specified by our changes in the folder
and folderListItem macros. We didn't want to change the
toolbar or any of the other macros. So there was no need
to specify those other macros inside tableFolder. If a
macro is unspecified, the Web Crossing default behavior (which
you can reference in standard.tpl) is used.
For example,
if you just wanted to change the way the toolbar looks
in your customized folders, all you would need inside tableFolder
is your own customized toolbar macro. You would not need
customized folder or folderListItem macros in that
case.
Another
major point is this - your modified folder and folderListItem
macros are nested inside the tableFolder macro. This means
your changes only affect folders that actually use tableFolder
(your test folder and all child folders). Nesting the macros inside
another macro limits the scope of their actions. If you wanted
to globally change folder and folderListItem, you
could simply remove the outermost
%% macro tableFolder %%
.....
%% endmacro %%
commands.
This would remove the protective nesting layer and would mean
that folder and folderListItem are globally customized
and affect all folders in your entire Web Crossing site.
By nesting
macros you can have completely different folder (and discussion)
appearances and behaviors in different parts of your site.
Now let's
look at the specifics of our customized tableFolder macro.
The
Contents of tableFolder
You can
copy the following macro into your own tablefolder.tpl
file and install in on your site to test it out. To install this
macro, follow the instructions in the section on WCTL
Macros.
This
is one of our longer examples, but the actual modifications to
the standard templates are few. To make it easier to see the changes,
modified sections are highlighted in red and then explained following
the listing.
%% macro tableFolder %%
<!------------------- folder ---------------------------->%% macro folder %%<HTML><HEAD><!-- Page produced by %% programName %%(r)/%% platform
%%-%% version %% (%% programPromo %%) for %% siteLicensee
%%--><!-- User interface (c)Copyright 1995-1999 by Lundeen
& Associates. All rights reserved.--><title>%% siteTitle %% - %% pathTitle %%</title></HEAD><body %% background %%>%% preparedFor %%%% banner
%%<b>%% backPath %%</b><UL><h1>%% pathTitle %%</h1></UL>%% pathStandardHeading %%%% set session.viewFlag 0 %%%% pathItems %%</TR></TABLE>%% use toolbar %%%% footer %%</BODY></HTML>%% endmacro %%
<!----- folder item template, default presentation
-------->%% macro folderListItem %%%% setPathToParent %%%% set _iconRow 4 %%%% setPath %%%% if !_iconRow %% %% set _iconRow 1 %%%% endif %%%% if session.viewFlag == 0
%% %% set session.viewFlag 1 %% %% set session.viewCount 1
%% <TABLE BORDER=0 CELLPADDING=2
CELLSPACING=0> <TR>%% endif %%%% if session.viewCount >
_iconRow %% </TR> <TR> %% set session.viewCount 1
%% %% endif %%<TD VALIGN=TOP CELLPADDING=4
CELLSPACING=4>%% if pathIsFolder %%<center><a href="%% pathUrl %%"><img border=0 src="%% siteImages %%/topic.gif"
alt=""><BR><b>%% pathTitle %%</b> %% if pathHasItems %% <BR>-
<font size=2>(%%nop%%
%% if pathHasFolders %% %% pathFolderCount %% %% if pathHasOneFolder %% folder%%nop%% %% else %% folders%%nop%% %% endif %% %% if pathHasDiscussions %% , %%nop%% %% endif %% %% endif %% %% if pathHasDiscussions %% %% pathDiscussionCount %% %% if pathHasOneDiscussion %% discussion%%nop%% %% else %% discussions%%nop%% %% endif %% %% endif %% )</font>%%nop%% %% endif %%</a>%%nop%%</center>%% else if pathIsDiscussion %%-
<!-- Discussion -->%%nop%%
%% if pathShowsSummaryButton %%-
<a href="%% urlBase %%230@%% certificate %%@%%
location %%">%%nop%%
-
<img align=bottom border=0 src="%% siteImages%%/outline.gif"
alt="[Outline] "
%% pictSizeOutline %%>%% pathIcon border=0 align=bottom%%
</a>%% nop %%-
<a href="%% pathUrl %%">%%nop%%
%% else %%-
<a href="%% urlBase %%230@%% certificate %%@%%
location %%">%% pathIcon border=0 align=bottom%% <a
href="%% pathUrl %%">%%nop%%
%% endif %%-
<b>%%nop%%
%% pathTitle %%-
</b>%%nop%%
%% if pathHasMessages %%-
<font size=2>(%%nop%%
%% pathMessageCount %% %% if pathHasOneMessage %% message%%nop%% %% else %% messages%%nop%% %% endif %% %% if pathHasNewMessages %% , %%nop%% %% pathNewMessageCount %% new%%nop%% %% endif %% )</font>%%nop%% %% else if pathIsNew %%-
<font size=2>(new)</font>
%% endif %%-
</a>%%nop%%
%% else if pathIsLink %%-
<!-- Link -->%%nop%%
%% setPathFollowLink %% %% if pathIsDiscussion && pathShowsSummaryButton
%%-
<a href="%% urlBase %%230@%% certificate %%@%%
location %%">%%nop%%
-
<img align=bottom border=0 src="%% siteImages%%/outline.gif"
alt="[Outline] "
%% pictSizeOutline %%>%% setPath %%%% pathIcon
border=0 align=bottom%% </a>%% nop %%-
<a href="%% pathUrl %%">%%nop%%
%% else if pathIsDiscussion %%-
<a href="%% urlBase %%230@%% certificate %%@%%
location %%">%% setPath %%%% pathIcon border=0 align=bottom%%
<a href="%% pathUrl %%">%%nop%%
%% else %% %% setPath %%<a href="%% pathUrl %%">%%nop%% %% if pathShowsSummaryButton %%-
<img align=bottom border=0 src="%% siteImages%%/t.gif"
alt="" %% pictSizeOutline %%>%% nop %%
%% endif %% %% pathIcon border=0 align=bottom%% %% endif %%-
<b>%% pathTitle %%</b>%%nop%%
%% setPathToLink %% %% if pathIsFolder && pathHasItems %%-
<font size=2>(%%nop%%
%% if pathHasFolders %% %% pathFolderCount %% %% if pathHasOneFolder %% folder%%nop%% %% else %% folders%%nop%% %% endif %% %% if pathHasDiscussions %% , %%nop%% %% endif %% %% endif %% %% if pathHasDiscussions %% %% pathDiscussionCount %% %% if pathHasOneDiscussion %% discussion%%nop%% %% else %% discussions%%nop%% %% endif %% %% endif %% )</font>%%nop%% %% else if pathIsDiscussion && pathHasMessages
%%-
<font size=2>(%%nop%%
%% pathMessageCount %% %% if pathHasOneMessage %% message%%nop%% %% else %% messages%%nop%% %% endif %% %% if pathHasNewMessages %% , %%nop%% %% pathNewMessageCount %% new%%nop%% %% endif %% )</font>%%nop%% %% endif %%-
</a>%% nop %%
%% setPath %% %% if userCanEdit %%-
 <a href="%% urlBase %%138@%% certificate
%%@%% location %%"><img border=0 align=top alt="Edit"
src="%% siteImages%%/smedit.gif" %% pictSizeInlineButton %%></a>
%% endif %% %% if linkShowDescription && linkDescription
%%-
<UL>%% linkDescription.quickEdit.htmlClosure
%%</UL>
%% endif %%%% else if pathIsChat %%-
<!-- Chat room -->%%nop%%
-
<a href="%% pathUrl %%">%%nop%%
%% if pathShowsSummaryButton %%-
<img align=bottom border=0 src="%% siteImages%%/t.gif"
alt="" %% pictSizeOutline %%>%% nop %%
%% endif %% %% pathIcon border=0 align=bottom%% -
<b>%%nop%%
%% pathTitle %%-
</b></a>%%nop%%
%% if user.userIsMember( "socks" ) %%-
<a href="%% urlBase %%196@%% certificate %%@%%
location %%">[Enter from outside the firewall]</a>%%nop%%
%% endif %% %% if userCanEdit %%-
 <a href="%% urlBase %%193@%% certificate
%%@%% location %%"><img border=0 align=top alt="Edit"
src="%% siteImages%%/smedit.gif" %% pictSizeInlineButton %%></a>
%% endif %%%% else %%-
<!-- Other -->%%nop%%
-
<a href="%% pathUrl %%">%%nop%%
%% if pathShowsSummaryButton %%-
<img align=bottom border=0 src="%% siteImages%%/t.gif"
alt="" %% pictSizeOutline %%>%% nop %%
%% endif %% %% pathIcon border=0 align=bottom%% -
<b>%%nop%%
%% pathTitle %%-
</b></a>%%nop%%
%% endif %%™@</TD> %% set session.viewCount session.viewCount
+ 1 %%%% endmacro %%
%% endmacro %%
As you
can see, most of folderListItems was left unchanged. All
that was added was some strategic code to count the columns, start
a new row and add table tags in appropriate places. Here is an
explanation of the changed places:
Changes
in folder:
</TR></TABLE>
These
two lines follow the built-in
pathItems command, which calls the folderListItems
macro in a loop (one loop for each item in the folder). When we
are all finished with folderListItems we want to close
the table we have created. This is accomplished by these two tags,
which end the row and close the table.
Changes
in folderListItem:
%% set _iconRow 4 %%
Here
we set a local variable called _iconRow to the value 4. We want
to make a table with 4 columns of cells on each row. You can change
this number to create tables with larger or smaller rows.
%% if session.viewFlag == 0 %% %% set session.viewFlag 1 %% %% set session.viewCount 1 %%-
<TABLE BORDER=0 CELLPADDING=2 CELLSPACING=0>
-
<TR>
%% endif %%
- Session
variables are special kinds of temporary variables that follow
along with a current user. Each user has his or her own set
of session variable that only exist while accessing Web Crossing.
These kinds of variable are extremely useful in such applications
as shopping carts and other applications that need to keep track
of changing values for a currently accessing user.
- Here
we are using two session variables:
- folderListItems
is called in a loop by pathItems, displaying each item
(folder, discussion, etc.) one-by one. session.viewFlag
is a session variable which starts off (by default) with a value
of zero. It's only purpose it to test to see whether the current
user has "been here before" or not - whether this is the first
time in the display loop or not. If this is the first time in
the display loop then we need to begin a new <TABLE> and
a new <TR> (table row). We only want to do start a new
<TABLE> one time, so we immediately set session.viewFlag
to a value of 1. Programmers call this kind of variable
a "flag" - a signal as to the current state of things while
a program is running.
- We
also start out by setting session.ViewCount to a value
of 1. This session variable keeps track of the current column
number. Remember, we don't want to display more than _iconRow
cells on any row.
%% if session.viewCount > _iconRow %%
</TR>
<TR>
%% set session.viewCount 1 %%
%% endif %%
If the
value in session.viewCount exceeds the value in _iconRow
then we end the current row, begin a new row and reset session.viewCount
to 1.
<TD VALIGN=TOP CELLPADDING=4 CELLSPACING=4>
We begin
a new cell, aligning the contents at the top of the cells and
put in a little spacing so the the table doesn't look too crowded.
</TD> %% set session.viewCount session.viewCount + 1 %%
We close
the cell and increment session.viewCount by 1.
We hope
this example encourages you to try further modifications. We (Doug)
has done customization at one of his sites to add customized icons
to each folder, and show a red flag if there are any new messages
in the sub-hierarchy, as in figure 4.
Figure
4 - a folder customized with the iconFolder template
As far as template customization goes, this iconFolder template
does not require a great deal of additions to tableFolder. The
main work is in creating all the icons! We also modified the template
(nested inside iconFolder of course) for Edit Folder Appearance
to allow the host or sysop to automatically set icons for each
folder, as shown in figure 5.
Figure
5 - automatically setting an icon for a folder inside iconFolder
Once
you start customizing, it is hard to stop!
Troubleshooting
I created
tableFolder as described above, but when I go into my test folder
it still looks the same.
- Perhaps
you entered the name of the customized template incorrectly.
Remember, inside Edit Folder you should enter just the name
of the macro (tableFolder), not the name of the template file
(tablefolder.tpl) or the macro command (macro tableFolder).
- Make
sure you have templates turned on (at the bottom of the Control
Panel). Also make sure that tablefolder.tpl is
inside the Web Crossing folder and that you changed webx.tpl
to include it.
|
